Explore our export-ready, thermally enhanced uninterruptible power supplies designed with isolation transformers, wide input voltage windows, and extreme heat resilience.
Operating critical power systems in Doha and the greater State of Qatar presents a unique set of electro-mechanical challenges. The Middle East desert climate combines extreme ambient temperatures exceeding 50°C with high relative humidity in coastal areas, heavy dust particulate concentration, and intense electrical load fluctuations caused by hyper-scale HVAC installations. Standard commercial off-the-shelf UPS units specified for temperate European or Asian environments frequently experience premature battery thermal runaway, fan failures, PCB insulation degradation, and severe thermal derating when deployed in Doha's industrial sectors.
As a specialized industrial UPS factory supplying Doha's electrical contractors, oil & gas facility managers, and engineering consultants, our power systems are meticulously engineered from the ground up to counteract these ambient vulnerabilities. Incorporating heavy-duty galvanic isolation transformers, conformal-coated printed circuit boards (PCBA), dust-filtered IP51/IP54 enclosures, and ultra-wide input voltage tolerance windows (90V–290V AC), our UPS range delivers uncompromised online double-conversion power security across Doha's most demanding operational zones.
Standard UPS systems derate by 20–30% above 40°C. Our systems utilize oversized IGBT power modules, redundant dual ball-bearing cooling fans with dynamic speed control, and high-temperature 105°C electrolytic capacitors to maintain 100% rated load capacity up to 50°C ambient temperatures without thermal tripping.
Fine desert sand particles and high airborne saline levels lead to electrical tracking and short circuits. Every internal transformer coil, choke, and PCB card is coated with anti-corrosion, tropicalized moisture-resistant varnish. Multi-stage replaceable air filters prevent dust ingress while ensuring forced air convection.
Doha’s power grid strictly regulates total harmonic distortion (THDi) and power factor injected back into the utility mains. Our 3-phase online UPS units feature Active Power Factor Correction (APFC) achieving input power factor >0.99 and THDi <3%, fully complying with Kahramaa grid connection standards.
Selecting the appropriate uninterruptible power supply topology is critical for long-term operational resilience. Commercial UPS systems rely on transformerless high-frequency designs optimized purely for low initial cost and compact size. However, in heavy industrial environments like Ras Laffan, Mesaieed, or Lusail utility hubs, non-linear motor loads, high inrush currents, and severe neutral-to-ground potential shifts quickly destroy commercial-grade electronics.
| Engineering Parameter | Standard Commercial UPS | Industrial UPS System (Our Factory Spec) |
|---|---|---|
| Galvanic Isolation | None (Transformerless) | Full Output / Input Copper Galvanic Isolation Transformer |
| Inrush Current Capability | 120% for 60 seconds | 200% for 30 seconds / 150% for 10 minutes (Motor Starting) |
| Operating Temperature | 0°C to 40°C (Derates heavily above 35°C) | -10°C to +55°C Continuous Duty without Derating |
| Enclosure Protection Class | IP20 (Standard office indoor) | IP31 / IP42 / IP54 Custom Industrial Enclosures |
| Input Voltage Window | ±15% AC Nominal | Wide 90V – 290V Phase Voltage (Avoids unnecessary battery discharge) |
| Mean Time Between Failures (MTBF) | ~100,000 Hours | > 250,000 Hours with Redundant Fan & Sensor Logic |
| Expected Service Life | 3 – 5 Years | 15 – 20+ Years with Periodic Preventative Maintenance |
Our heavy-duty UPS solutions safeguard vital infrastructure, oil refining, transportation hubs, and high-density data centers throughout the State of Qatar.
Deployed in Ras Laffan Industrial City and Mesaieed, our UPS systems provide uninterruptible DC and AC control power to emergency shutdown systems (ESD), supervisory control and data acquisition (SCADA) nodes, gas detectors, and hazardous area telemetry where power loss could lead to catastrophic environmental or safety events.
Powering continuous operations across Lusail City, Msheireb Downtown Doha, and the Doha Metro network. Our modular and 3-phase UPS units keep automated signaling, tunnel ventilation safety fans, station access control, and master emergency lighting illuminated 24/7 without dynamic phase shifts.

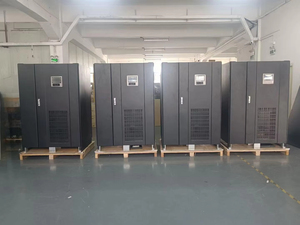

Supporting hyperscale facility expansion in West Bay and Qatar Free Zones (QXZ). Utilizing 100KW–150KW hot-swappable modular UPS architectures, data center operators achieve N+1 or N+2 redundancy, Unity Power Factor (PF=1.0), and maximum energy efficiency reducing cooling overhead.
Providing clean, isolated pure sine wave power to high-resolution MRI scanners, operating theater life-support networks, and intensive care isolation monitors in Hamad Medical City facilities, preventing power spikes or sag artifacts during diagnostic imaging.
Equipped with anti-vibration shock mounts and marine-grade protective enclosures, our industrial UPS systems run continuous crane control, automated container stacking logistics, and port vessel berthing monitoring stations along the coastal waters of Al Wakrah and Hamad Port.
Providing high-voltage DC UPS and AC backup for remote telecom towers across Qatar's desert interior, ensuring uninterrupted cellular communication, emergency services routing, and IoT sensor connectivity even during localized grid utility disconnections.
Under the framework of Qatar National Vision 2030 (QNV 2030), the nation is undergoing an unprecedented digital and sustainable energy transformation. This strategic directive mandates significant increases in power operational efficiency, reduction of industrial carbon footprints, rapid adoption of solar energy (such as the Al Kharsaah Solar PV project), and total modernization of the national electrical grid overseen by Kahramaa.
Industrial UPS suppliers servicing Doha must adapt to these shifting regulatory and technological landscapes. Modern power backup installations are no longer passive battery systems waiting for grid failures; they are active, intelligent energy management nodes integrated into modern industrial smart grids.
To align with Qatar's solar initiatives, our latest industrial double-conversion UPS platforms support direct DC-bus coupling with solar photovoltaic (PV) arrays. During daylight hours, solar power directly feeds the UPS DC bus, reducing grid utility draw while keeping standby batteries at 100% state-of-charge.
Traditional valve-regulated lead-acid (VRLA) batteries suffer rapid capacity degradation when exposed to Doha's heat (losing 50% lifespan for every 8°C rise above 25°C). We are leading the transition to Lithium Iron Phosphate (LiFePO4) battery racks featuring integrated Battery Management Systems (BMS). Lithium chemistry tolerates operating temperatures up to 60°C, offers 3,000+ charge cycles, and reduces total floor space footprint by 60%.
When utility power quality in Doha smart districts is stable, our modular UPS systems automatically operate in Intelligent ECO Mode, delivering clean power at up to 99% efficiency. If utility voltage fluctuates beyond pre-set thresholds, the inverter seamlessly transfers back to full double-conversion online mode in less than 2 milliseconds.
Unplanned industrial downtime in Qatar’s oil or manufacturing sectors can cost millions of QAR per hour. Our UPS controllers feature dual RS485, Modbus RTU/TCP, SNMP, and cloud-connected IoT gateways that continuously transmit real-time telemetry (capacitor ripple voltage, fan speed rpm, battery internal resistance) directly to facility SCADA systems for predictive maintenance alerts.
Backed by over 30 years of in-house design and manufacturing expertise (under Sanstar Microsystems / Micro Power heritage), our manufacturing engine builds power electronics designed to endure the world's most unforgiving electrical environments. Our facility is engineered around uncompromising quality assurance, complete vertical integration, and dedicated engineering support for Middle Eastern export projects.

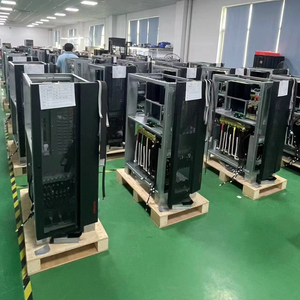

Every single UPS system, SMPS unit, and industrial charger undergoes 100% full-load thermal burn-in testing under elevated ambient temperatures and full high-voltage isolation screening prior to export packing. No unit leaves our facility without documented test records retained against batch serial numbers.
We do not rebrand generic white-label electronics. Our engineering teams control magnetic component design, PCB layout, firmware programming, thermal modeling, and structural enclosure fabrication. We customize output voltages (e.g., 110VDC, 220VDC, 380VAC, 415VAC), dual-redundant charging schemes, and specialized bypass logic for bespoke project requirements.
Our product portfolio complies with international quality frameworks, carrying BIS, CE, and UL certifications. Our adherence to ISO 9001 quality management guarantees that industrial contractors in Doha receive repeatable engineering standards, full schematic transparency, and complete documentation for local authority approvals.
Essential guidance for electrical consultants, MEP contractors, and facility engineers specifying industrial UPS systems in Qatar.
Consult directly with our senior application power engineers. Send us your load profile, input voltage variations, required backup runtime, and environmental constraints for a comprehensive schematic proposal.
