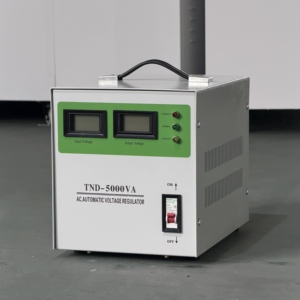

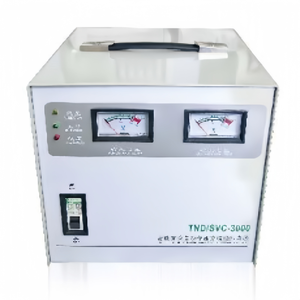

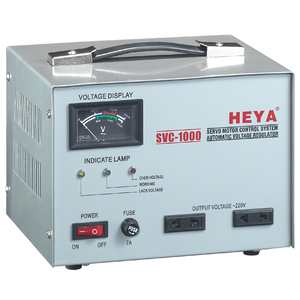

Industrial SVC Servo 0.5KVA~30KVA Single Phase Voltage Regulator
- Capacity: 0.5KVA to 30KVA
- Pure Copper Servo Motor Drive
- Wide Input: 160V–250V AC
- Continuous duty cycle rating
Exceeding international standards for voltage compensation, phase balance protection, and industrial power conditioning.
Established in 1994, our engineering facility (Sanstar Microsystems Pvt. Ltd. / Micro Power) delivers industrial-grade power conditioning units, DIN rail power supplies, DC UPS, and specialized voltage regulators across international supply chains.
Every single unit undergoes rigorous multi-stage testing including thermal stress screening, 100% burn-in cycles, and dielectric withstand tests prior to export dispatch. Our incoming raw materials are vetted by certified testing labs.
Our dedicated power electronics R&D team designs custom magnetics, PCB layouts, firmware, and specialized enclosures. We adapt output tolerances, potential-free contact alarms, and dual-redundant topologies for global OEMs.
Operating from MIDC Hingna Road Industrial Zone, Nagpur, our production lines follow stringent ISO processes, supplying certified equipment to telemetry, security, machine tool, and power substation contractors worldwide.

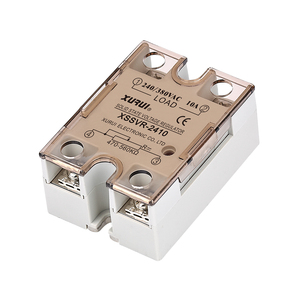

Modern industrial loads demand tailored voltage conditioning. Choosing between Servo Motor Control, Solid-State Switching (SSVR), and Static Magnetic Regulators requires evaluating response speeds, waveform integrity, and thermal handling.
| Performance Criterion | Servo Motor Stabilizer (SVC/TND) | Solid-State Regulator (SSVR) | Static Tap-Changing AVR |
|---|---|---|---|
| Correction Speed | 15V to 25V / Second | Instantaneous (<10 ms) | 20ms – 40ms |
| Voltage Accuracy | Ultra-High (±1.0% to ±1.5%) | Adjustable (±2.0% to ±5.0%) | Moderate (±3.0% to ±5.0%) |
| Waveform Distortion (THD) | Zero Harmonic Distortion (Pure Sine) | Phase-angle dependent | Negligible |
| Mechanical Wear | Periodic Carbon Brush Maintenance | 100% Solid-State (No Wear) | Relay Contact Arching over time |
| Overload Capacity | 200% for 5 Seconds | 120% for 1 Second | 150% for 2 Seconds |
| Best Application Target | CNC, Medical Imaging, Factory Main Line | Heater Control, High-Vibration Racks | Commercial Racks, Telemetry Units |
The total cost of ownership (TCO) of a voltage regulator is governed by internal electrical losses ($I^2R$). High-precision copper-wound transformers feature significantly lower electrical resistance, resulting in cooler operational temperatures, reduced thermal expansion stress, and up to 18% better energy conservation compared to aluminum-wound alternatives.

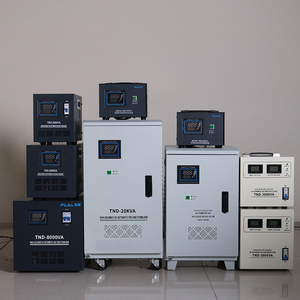

Our flagship SVC and TND series regulators utilize 100% continuous-cast electrolytic copper toroids, preventing localized hot-spots and extending carbon brush lifecycle under harsh high-ambient conditions (up to 55°C industrial environments).
In developing power grids or heavy industrial parks, line voltages frequently sag down to 100V AC or spike above 280V AC during load shedding and heavy motor actuation. Standard regulators shut down during these extremes.
Advanced automatic voltage regulators integrated with auto-buck-boost bucking transformers compensate wide input fluctuations (100V–300V AC range) into a stabilized output (220V ±2%), ensuring uninterrupted operation for sensitive PLC racks and microprocessors.
As industrial automation moves toward Industry 4.0 and green energy integration, power conditioning equipment is evolving rapidly.
Mechanical carbon brushes are increasingly supplemented by high-frequency Digital Signal Processors (DSP) paired with Insulated Gate Bipolar Transistors (IGBT). These systems provide sub-cycle regulation (<2 milliseconds) with zero wear and tear.
Modern B2B exporters are incorporating Modbus-RTU and RS485 communication protocols into AVR digital displays. Plant managers can remotely track real-time grid harmonics, thermal rise, and brush wear over cloud dashboards.
Global regulatory frameworks (such as EU EcoDesign and Energy Star guidelines) mandate higher efficiency thresholds under partial load conditions. Advanced core materials, like amorphous alloy magnetic cores, reduce no-load standby losses by up to 60%.
When sourcing industrial voltage stabilizers from international manufacturers, procurement managers must look beyond unit purchase price. Key risk-mitigation factors include:
Inductive machinery (e.g., air compressors, electric motors, heavy pumps) generates high inrush currents during startup—often 3 to 5 times their nominal running current.
Recommended Sizing Formula:
Required AVR Rating (kVA) = (Total Load kW / Power Factor) × 1.35 Safety Factor
For direct-on-line (DOL) motor starting, select servo regulators with elevated short-term overload capacity ratings.
Technical clarification for procurement officers, electrical engineers, and distributor partners.
Whether you require standard SVC single-phase units, heavy-duty 3-phase industrial stabilizers, or custom OEM transformer engineering, our application engineering team is ready to review your project specifications.
